Servo Control Accuracy in One Simple Electromagnetic Package

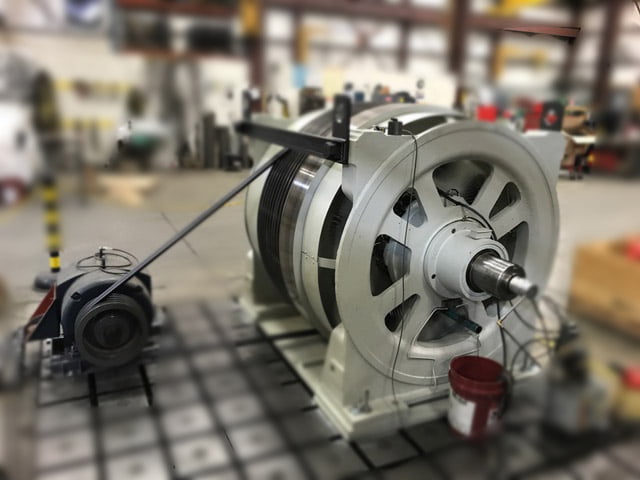

The Dynamatic Constant Energy System (CES) Mechanical Press Drive is a combination of an air-cooled adjustable speed drive, a brake, a belt ring flywheel and a shaft-mounted tachometer in a common housing.

  • Functions within a wide stroking range while exercising full control of the slide within individual strokes.
  • Produces enough inertia for normal, double and triple action press applications.
  • Clutch/brake design helps avoid “tearing” of pressed metal parts while optimizing parts per minute production.
  • Features can be fully utilized by blanking, deep draw transfer, progressive die, follower, synchronized and multiple action presses with automated handling equipment.
  • 100% factory tested under simulated load-operating press control conditions using a custom-built burn-in test chamber designed to operate at all voltages, under full load, using actual coils from a working CES mechanical drive.
  • Test chamber exposes the controller to rigorous vibration and extreme heat similar to the working press environments, meeting or  exceeding the highest industry standards on any press drive controllers available today.

Dynamatic® CES Drives

Accept no alternatives. Specify Dynamatic® CES quality products.

Why Use Dynamatic Eddy Current CES Press Drives?

  1. Easy maintenance! With oil-lubricated bearings, we recommend lubrication every 6 months at a minimum.
  2. There is no physical contact between input and output members, which leads to smooth operation.
  3. An all-in-one piece of equipment. The clutch, brake and flywheel are in one housing.

We’re your complete source for:

  • New digital control upgrades
  • Quick-ship control board repair service
  • Full line of drop-in replacement control options
  • Certified original CES parts
  • Factory re-manufacturing, with 1-year warranty
  • Maximum production with minimum scrap

  • Microprocessor based control with logic safety

  • Servo control accuracy in one simple package

  • Electromagnetic adjustable speed clutch design

  • Original equipment on Verson, Danly, Komatsu, Eagle and Bliss 1000 ton and larger presses

Accept no alternatives. Specify Dynamatic CES quality products.
